01AD/01AD pro Parameters
| Function | Parameter |
|---|---|
| Supported WiFi | Not specified |
| Supported Bluetooth | Not specified |
| Manual watering | Press up and down arrows to turn on AB pump. |
| Timing watering | Set by machine buttons. |
| Timing mode | Cyclic operation. |
| Number of timing programs | 1 |
| Timing watering duration | 999 seconds. |
| Interval duration | 1 - 999 hours. |
| Battery size | AA |
| Number of batteries | 4 |
| Power supply voltage and current | 5V 2A |
| Power interface | DC 3.5 |
| Power-on/off duration | Press and hold power button for three seconds. |
| Number of channels | 2 |
| Water shortage protection | 10 seconds. |
| Water supply method | Water container. |
| Shell material | ABS + PP |
| Host size | 83mm*83mm*95mm |
| Lift height | ≥2.5m |
| Suction height | ≥2m |
| Flow rate | 0.3 - 0.8LPM |
| Maximum water pressure | ≥30psi |
| Working temperature | 0 - 50℃ |
If you need your mobile phone to remotely control your device
click the picture on the left to purchase it
-
- Automatic Watering
-
- Adjustable Water volume
-
- Manual watering
-
- Upgradedanti-siphon

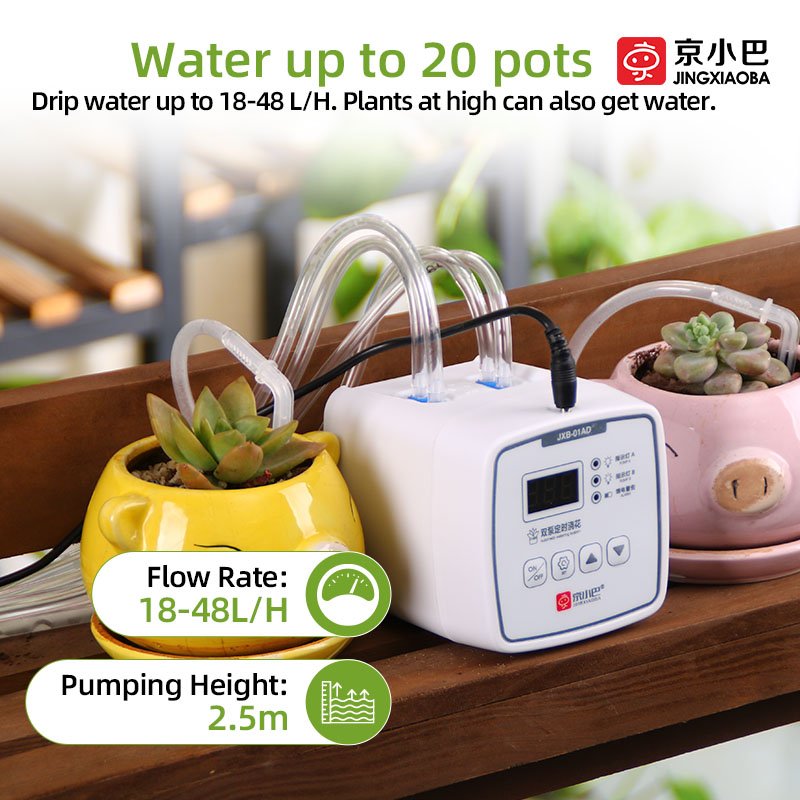

Flow and pressure
watering system automatic
The pump head height is greater than 2.5 meters, and the flow rate is about 18-48L/H，This is enough to have 10-20 medium sized planters in the house for regular watering
Drip arrow to adjust flow rate
watering system automatic
A drip arrow kit with adjustable flow rate can be selected from the product options to adjust the volume of water for each pot separately. More convenient to set watering volume than regular drip arrow. Note that the first installation is easy to close each drip arrow, and then adjust the drip state from the first, then adjust the second, and so on

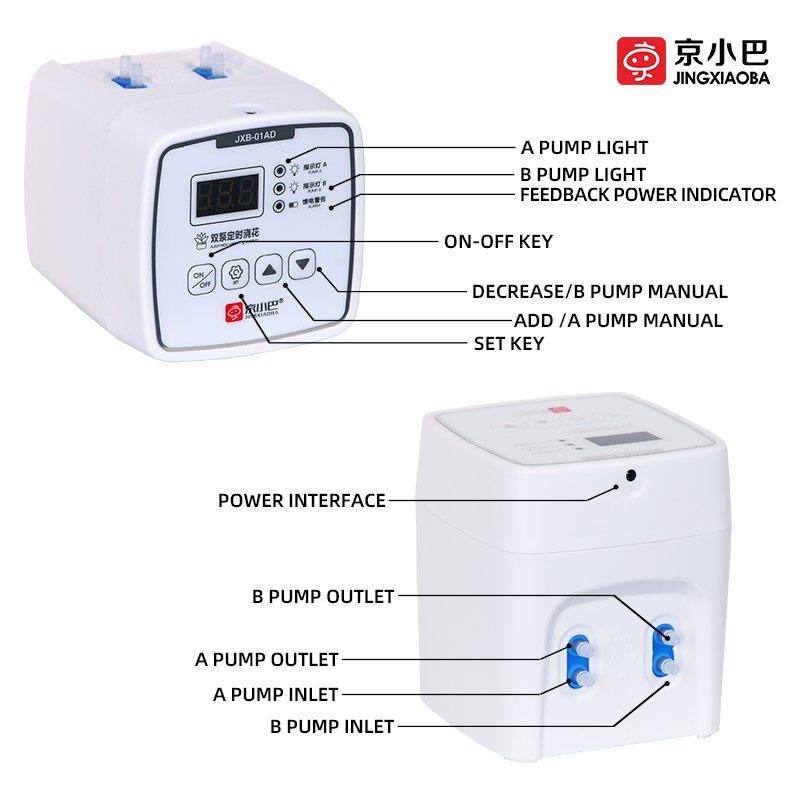

Two built-in water pumps
watering system automatic
The device has two built-in pumps, which can be independently controlled, equivalent to two ordinary watering timers,When the power supply is low or the power supply current is low, the indicator light on the device will turn red

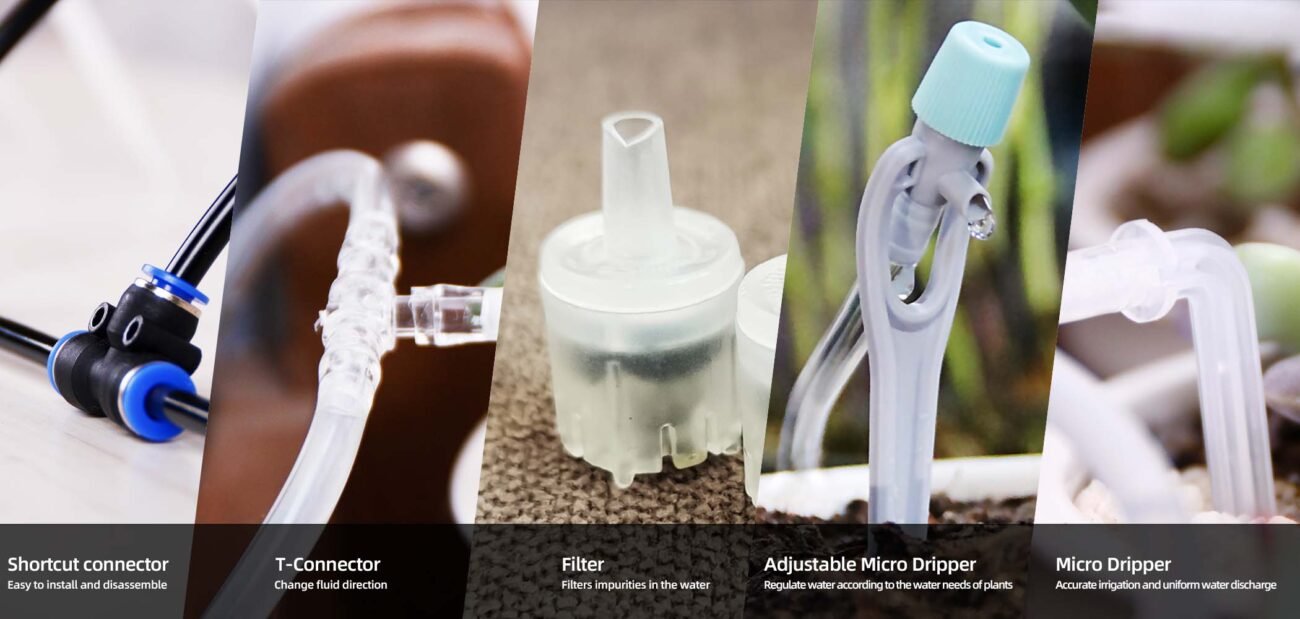

More options
watering system automatic
The characteristics of each accessory are different, and you can choose the product kit you need according to your own needs
Power supply selection
watering system automatic
The 01AD has two power options, the first being a battery-powered solution. The bottom of the timer watering device has a battery compartment, using AA*4 battery power supply; The second is to use a power adapter power supply scheme, the adapter needs 5V2A, after the purchase of the package we give 5V2A power adapter. These two schemes can be used alone or together. When used at the same time, the battery will not be charged. We do not recommend the use of AA rechargeable batteries, because generally a rechargeable battery voltage is only 1.2V, so four batteries are only 4.8V, which is lower than the normal use of voltage.
